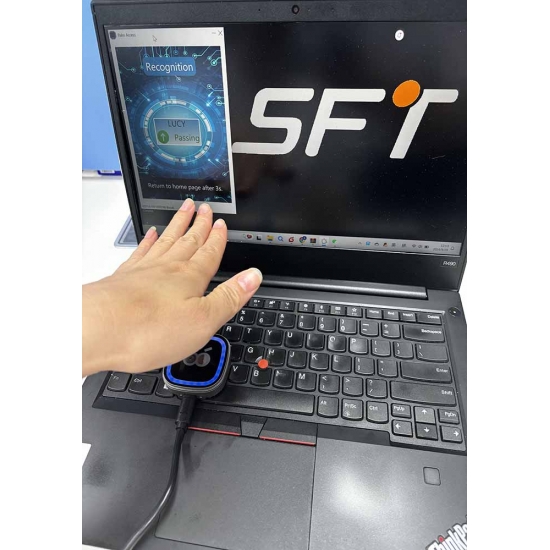

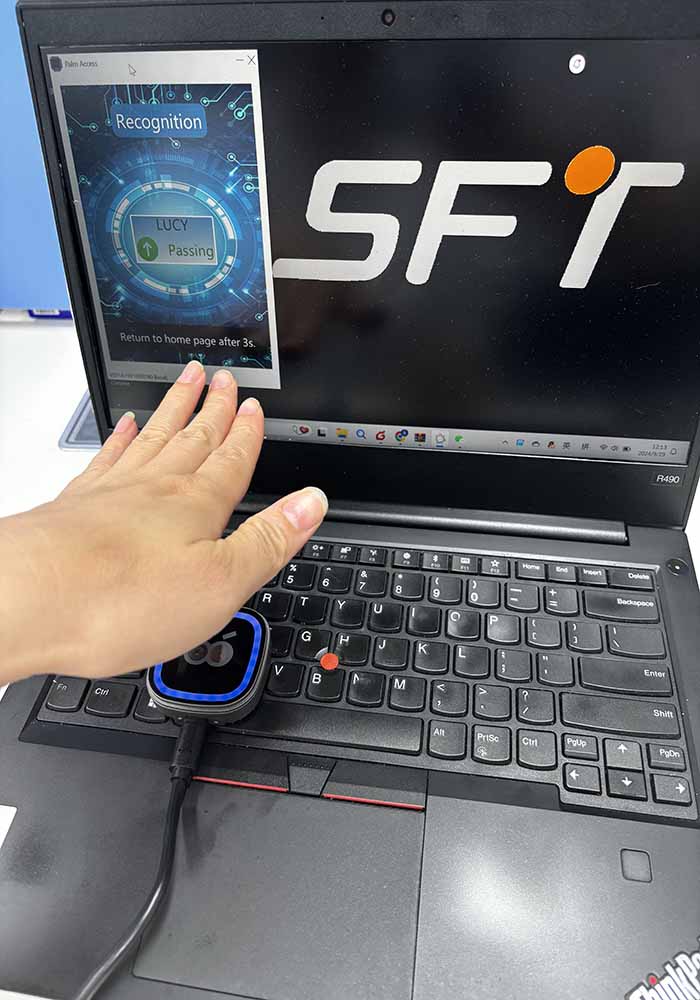

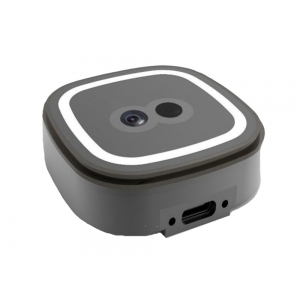

Mini Windows and Android Palm Vein Access Control Scanner

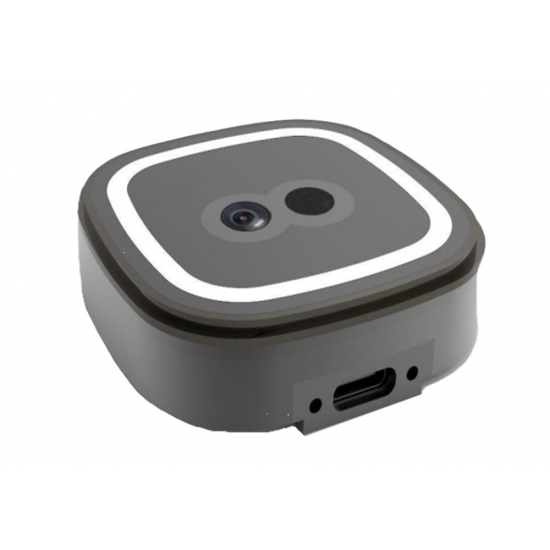

Product Name:  Mini Windows and Android Palm Vein Access Control Scanner model SF220

Main Features:

Working Distance for Palm: 5-12cm

Reading Distance up to 3~20cm for payment code and refund code

RE Grade: GB 9254 CLASS B

Palm Vein scanner full functional Display

SF220 works a  reading distance up to 12cm

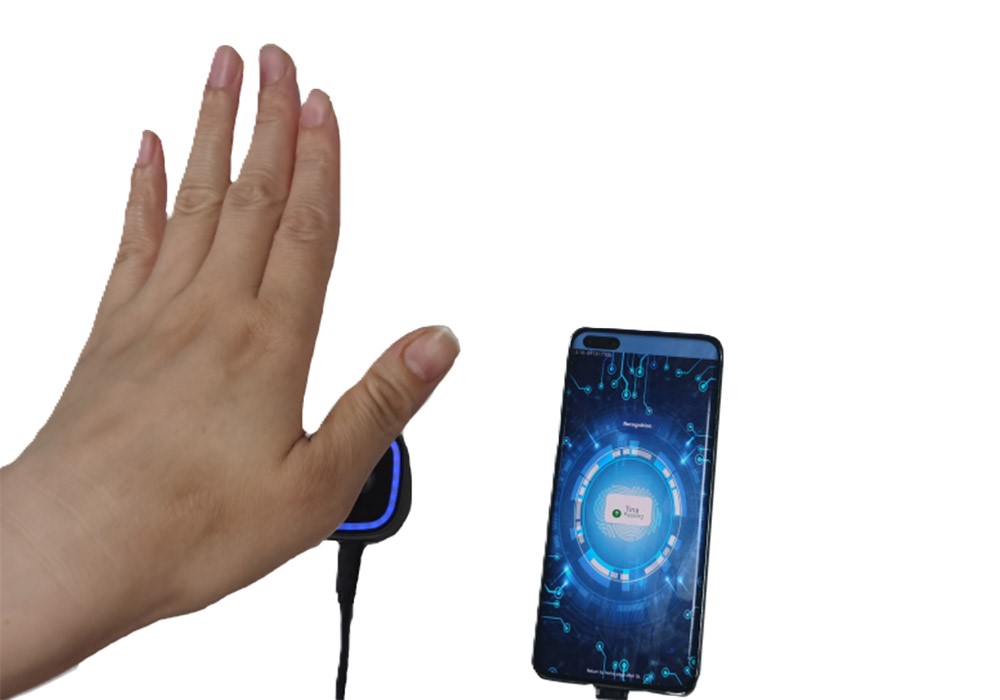

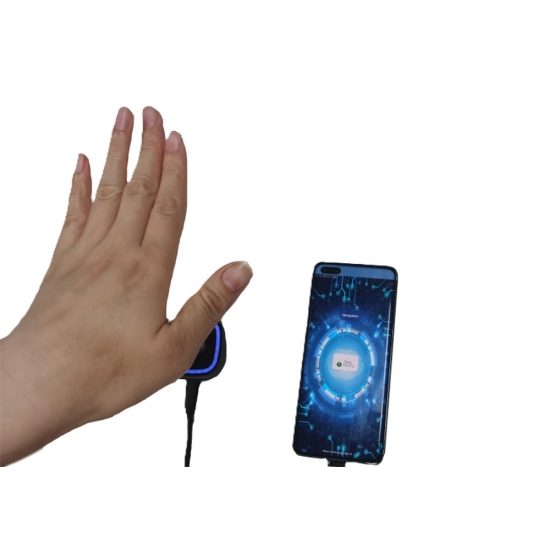

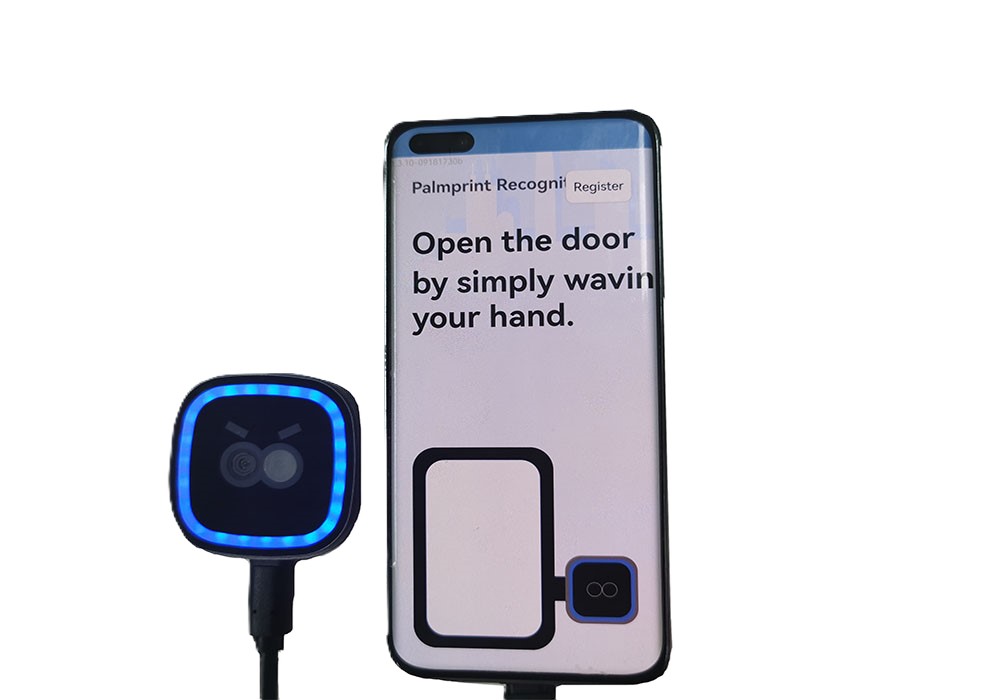

SF220 works perfectly with Android devices

Technical Specification:

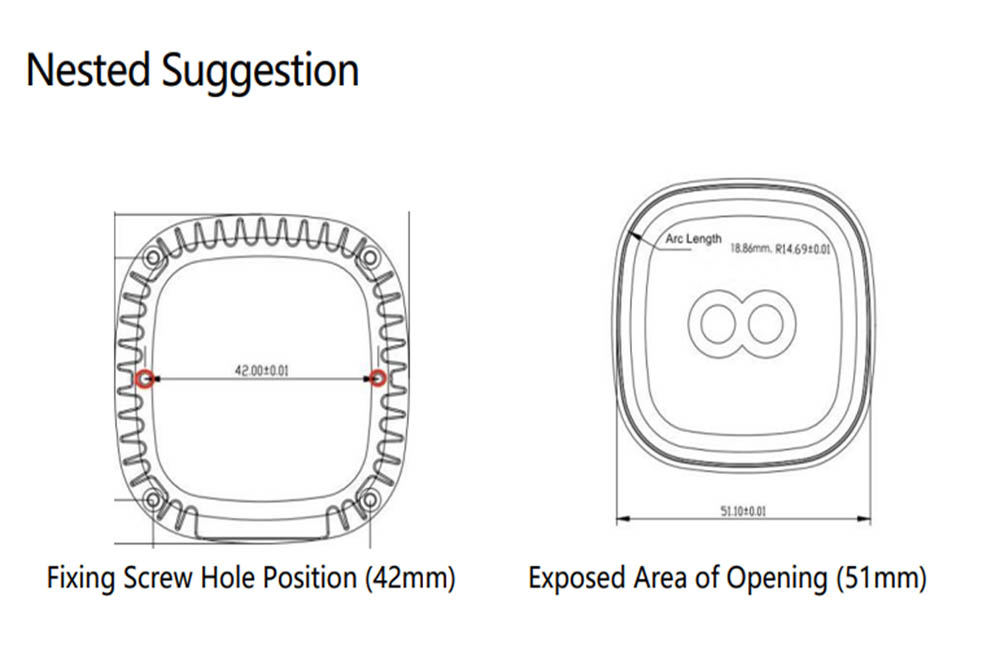

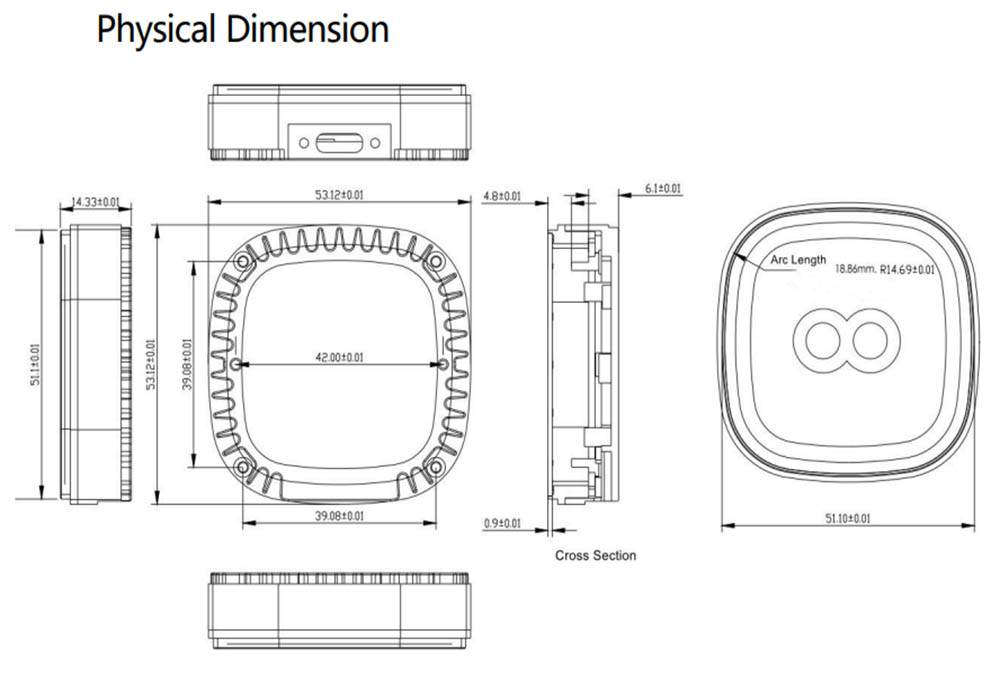

Maximum size：L53.12mm*W53.12mm*H14.33mm

Communication: Interface USB Type C interface (USB 2.0 protocol)

Working distance for palm: 5~12cm.

Module Parameters: Working distance for scanning code 3~20cm, support payment code and refund code.

Operating voltage: 5V~12V

Supply current:  ≥1A

Module power consumption: Standby: 2.0W；scan palm 2.7W

ESD level Contact discharge: 4 kV, air discharge 8 kV.

RE grade GB 9254 CLASS B

Working Environment: Temperature －10℃～55℃

Humidity Relative humidity: 0% ~ 95%, no condensation.

Intensity of illumination: 0-50,000lux

Storage Environment: Temperature －40℃～85℃

Humidity Relative humidity: 10% ~ 95%, no condensation.

Normal working temperature rise Temperature rise of shell < 10℃ [on 3s and off 3s]

ESD level Contact discharge: 6 kV, air discharge ±10KV.

RE grade: Comply with GB 9254 CLASS B specification.

Working Life More than 3 years

Environmental Certification RoHS
