IP67 Industrial 4G Android DPM code Barcode scanner

Product Name: IP67 Industrial 4G Android DPM code Barcode scanner model SF3506

Main Features:

Android 11 OS

High quality Qualcomm SDM450 CPU

3GB+32GB or 4GB+64GB internal memory for option

DPM hard scanner module with Ring multi angle fill lighting

IP67 standard withstand 2m drop testing

Big battery up to 4800mAh

4G Network

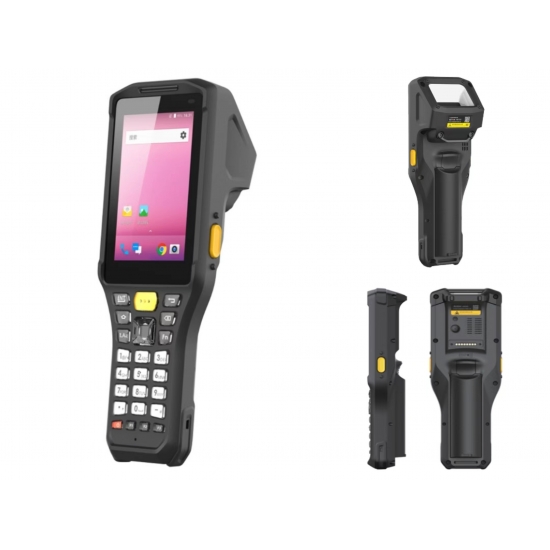

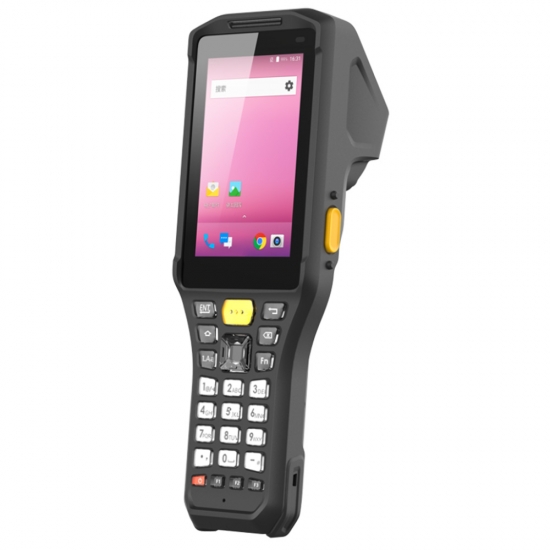

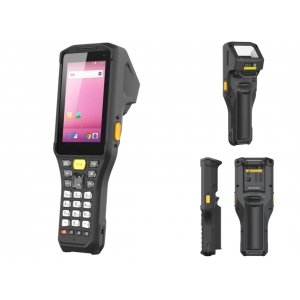

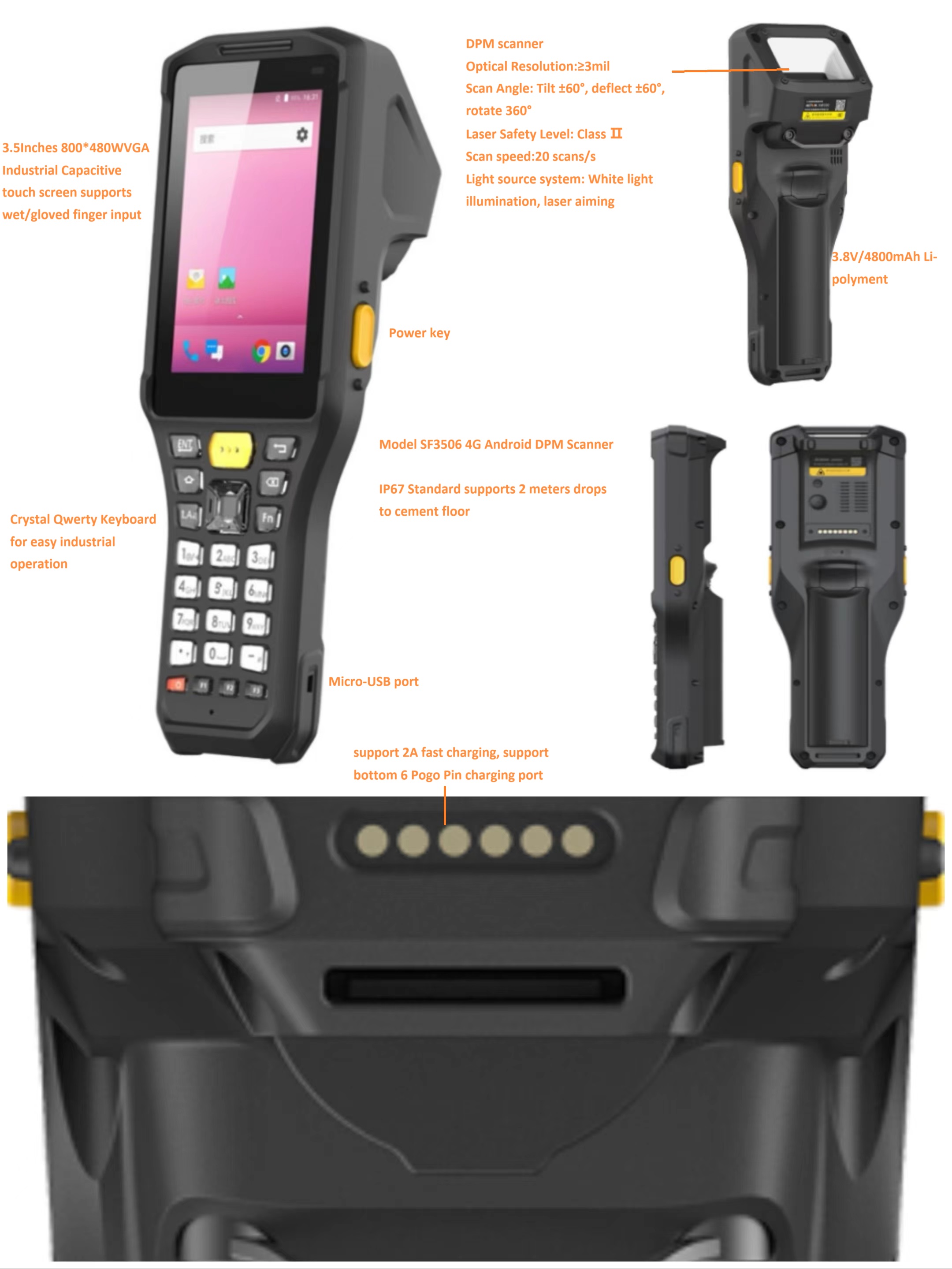

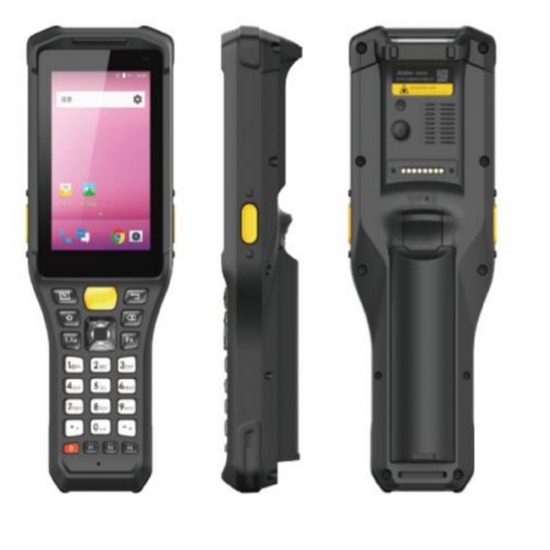

Android DPM scanner SF3506 Full functional Display

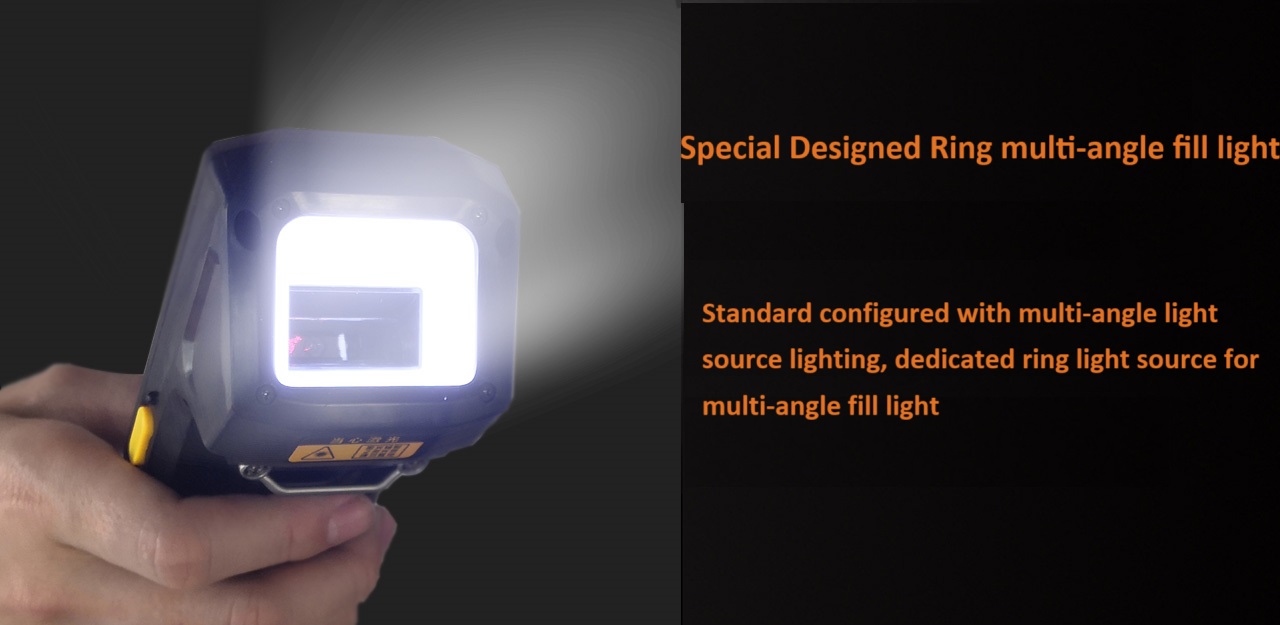

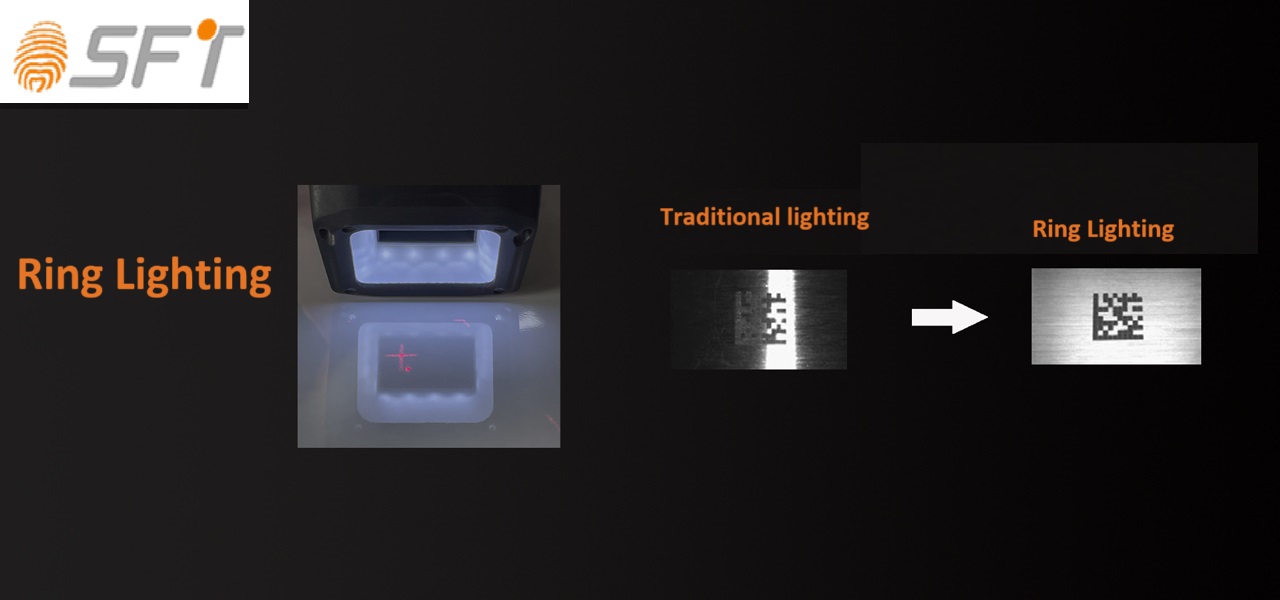

Android DPM Code Reader model SF3506 is designed ring multi angle filling for high quality code reading

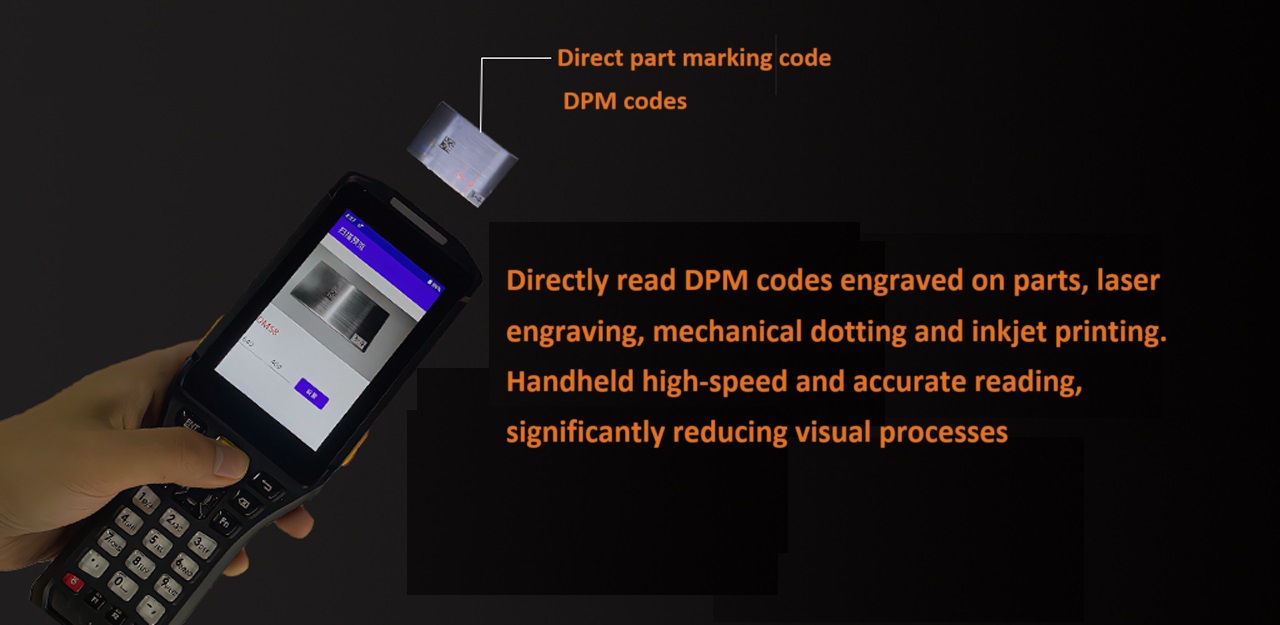

SF3506 DPM datamatrix code scanner could read the datammatrix codes in very high effecient way

Technical Specifications

Performance parameter

CPU: Qualcomm platform, Snapdragon SDM450

RAM+ROM:3GB+32GB

Expansion slot: Micro SD card, minimum support to 64GB

Development environment

OS：Android 11

Development：tools Eclipse/Android Studio

SDK：Terminal Software Development Kit

Physical parameter

Device dimension:66 x 195 x 38mm

Device weight:330 g

Standard accessories: Adapter, USB cable, wristband, hand strap

Battery:3.8V/4800mAh，Li-polyment,

Keypad: Crystal keyboard, keyboard backlight is white

Display screen:3.5 inch, 800*480 WVGA

Touch screen: Industrial capacitive screen, support wet/gloved finger input

Interface: Micro USB 2.0 x 1, SIM Card x 1, TF Card x 1, 6 POGO PIN x 1,

Power: Require support 2A fast charging, support bottom 6 Pogo Pin charging port

Charge LED notification: Red means charging, green means full charge

Scan LED notification: Scanning notification(red, green) / audio notification

Scan engine:S20,

Vibration: Built-in motor

G-sensor: Support 3 axes

Speaker:1.8W high-power speaker with enhanced drive circuit

Data communication & Operation environment

WIFI: WiFi802.11 a/b/g/n/r/ac (Dual-band Wi-Fi: 2.4G+5G)

WWAN

GSM: 900,850,1800,1900MHz;

WCDMA: B1/B2/B4/B5/B6/B8/B9/B19

TDD-LTE: B38/B39/B40/B41

FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B19/B20/B25/B26/B28AB/B30/B66

Intra-band Contiguous CA:1/2/3/4/5/7/8/9/12/38/39/40/41

Bluetooth: BT 4.2 BLE

GPS Support: GPS/AGPS/Glonass/ Beidou, Target SNR≥39dB (Singal level-130dBm)

Drop Multiple 2 meters drops to cement floor

IP level：IP67

ESD：±15kv air discharge ,±8kv direct discharge

Data capture

Camera (optional)

Rear Camera:13.0MP, auto focus, support PDAF

NFC (optional)

Frequency:13.56 MHZ

Reading distance: Within 3cm

Protocol standard: ISO/IEC 14443A/B, ISO/IEC 15693

Anti-condensation heating indicator( optional)

Component: Temperature and humidity sensor, heating film attached to the scanning window, anti-condensation fogging

Indicator: Different colors on light strip show different status

2D Image Scanning Engine & Accessories

Optical Resolution:≥3mil

Scan Angle:Tilt ±60°, deflect ±60°, rotate 360°

Laser Safety Level: Class Ⅱ

Sacn speed:20 scans/ s

Light source system: White light illumination, laser aiming

Standard accessories: USB cable,adapter,user manual

Optional accessories: Battery charger
