Rugged Industrial 4G Android Freezer rated Cold Storage Barcode Scanner Mobile Computer PDA

Product Name: Rugged Industrial 4G Android Freezer rated Cold Storage Barcode Scanner Mobile Computer PDA model SF3506C

Main Features:

Qualcomm Octa-core CPU

Android 10 upgradable

Internal self Heating

Big Freezer battery up to 5000mAh

Honeywell barcode scanner

IP67 level protection withstand 2m conceret floor drop

4G network connection

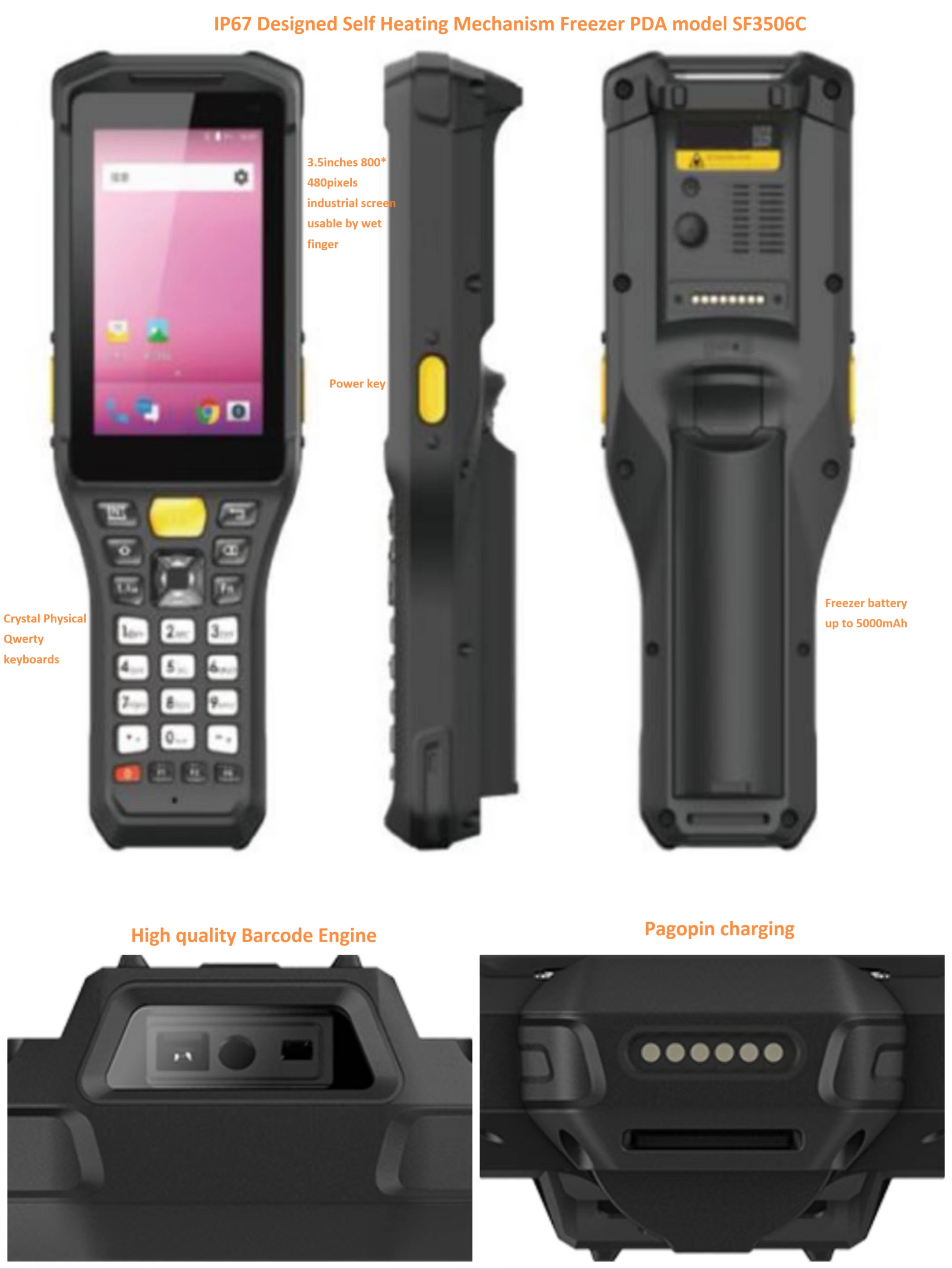

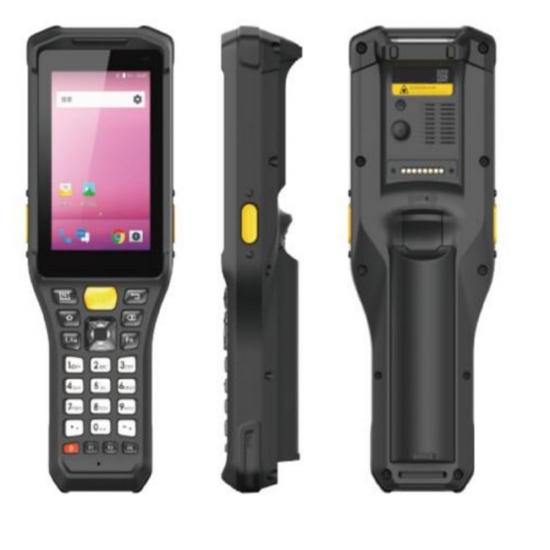

SF3506C Freezer rated PDA full function display

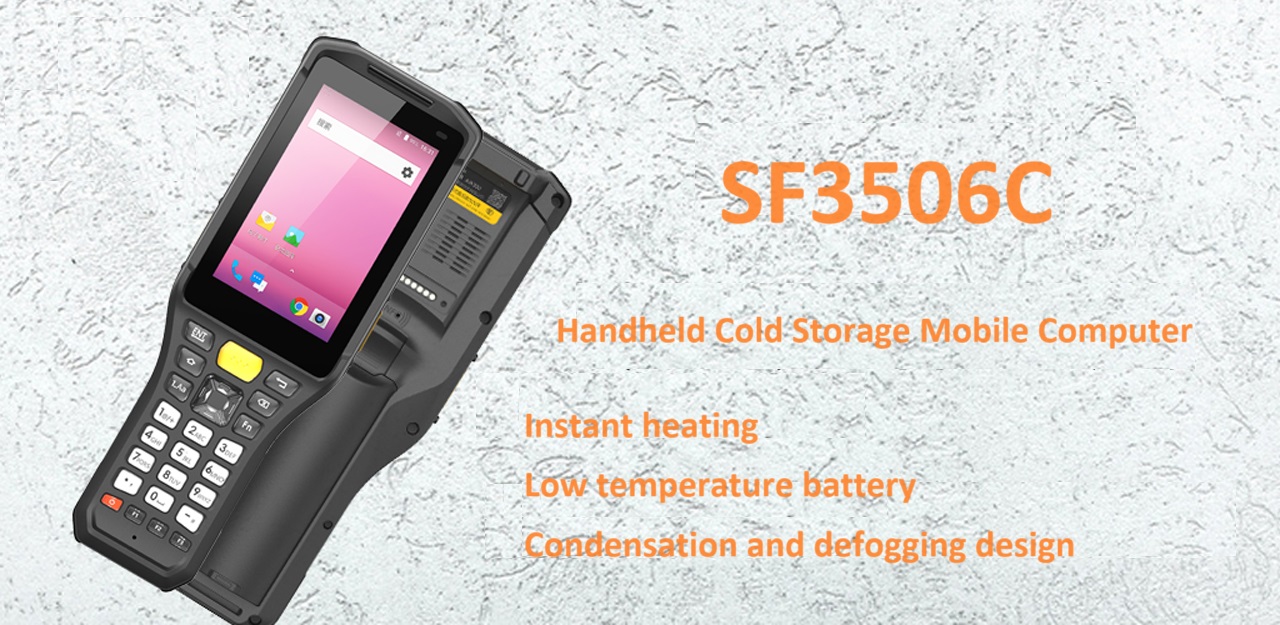

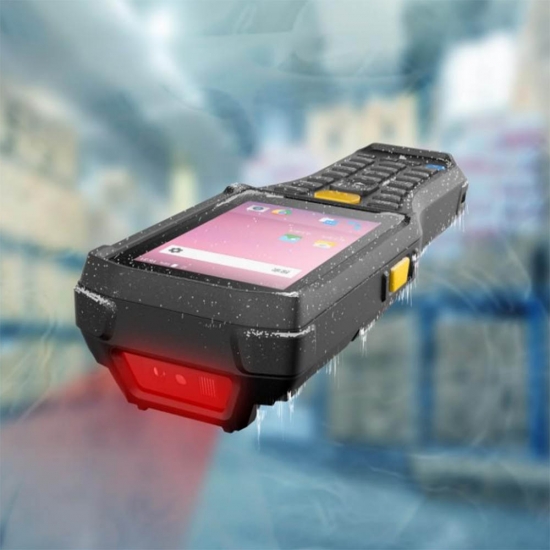

Cold Storage PDA

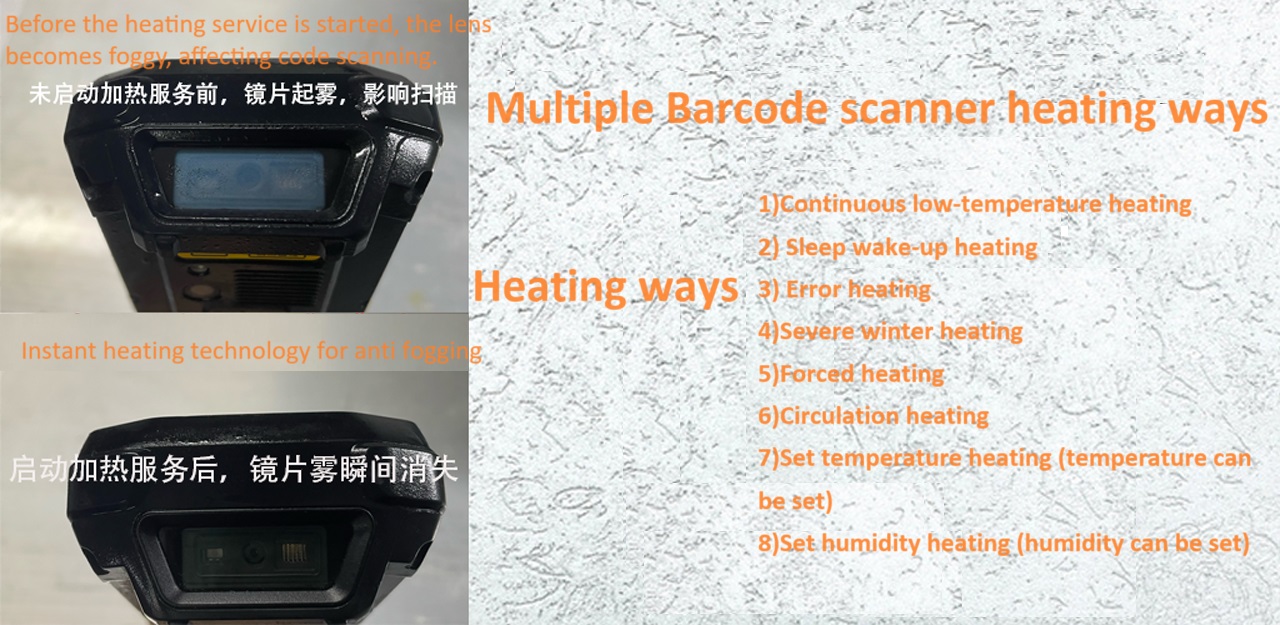

SF3506C supports multiple anti-fogging ways to be ideally used in cold storage warehouse

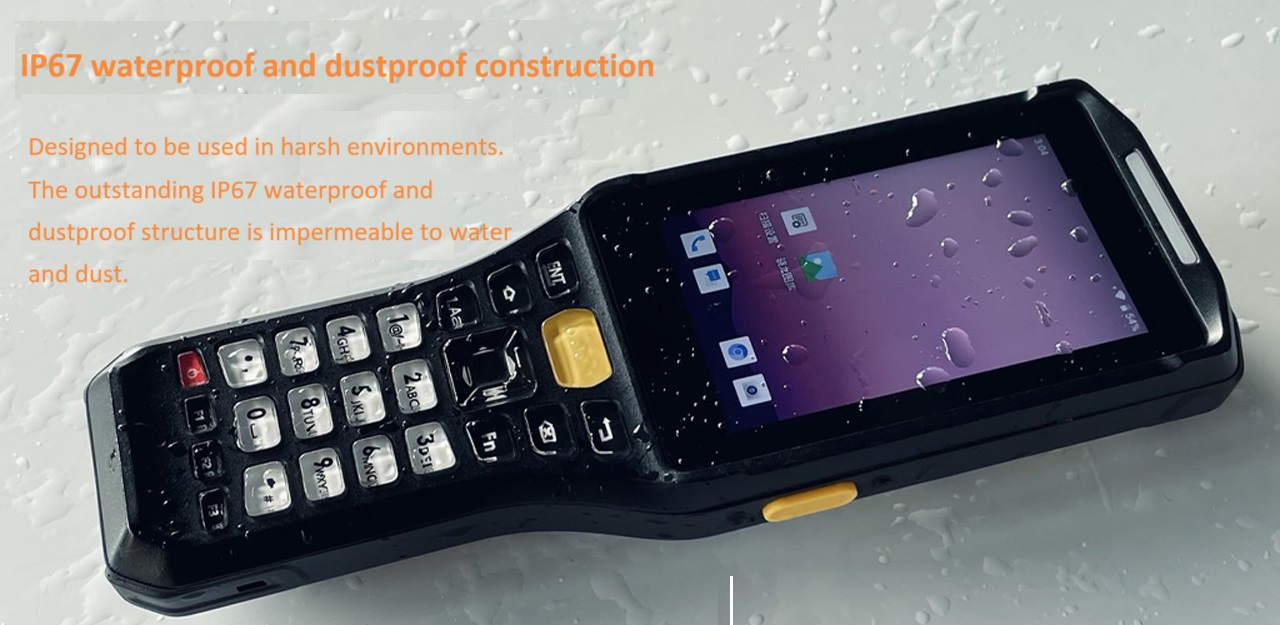

SF3506C is industrial IP67 designed for harsh enviroment usage

Technical Specification:

Performance parameter

CPU:Qualcomm platform, Snapdragon SDM450

RAM+ROM:2GB+16GB/3GB+32GB/4GB+64GB

Expansion slot:Micro SD card, minimum support to 64G

Development environment

OS：Android 10 Upgradable

Development：tools Eclipse/Android Studio

SDK：Terminal Software Development Kit

Physical parameter

Device dimension:66 x 195 x 38mm

Device weight:330 g

Standard accessories:Adapter, USB cable, wristband, hand strap

Battery:3.8V/4800mAh，Li-polyment,

Keypad:rystal keyboard, keyboard backlight is white

Display screen:3.5 inch, 800*480 WVGA

Touch screen:Industrial capacitive screen, support wet/gloved finger input

Interface:Micro USB 2.0 x 1, SIM Card x 1, TF Card x 1, 6 POGO PIN x 1,

Power:Require support 2A fast charging, support bottom 6 Pogo Pin charging port

Charge LED notification:Red means charging, green means full charge

Scan LED notification:Scanning notification(red, green) / audio notification

Scan engine:N6603, N6703,S20,CM60

Vibration:Built-in motor

G-sensor:Support 3 axes

Speaker:2W high-power speaker with enhanced drive circuit

Data communication & Operation environment

WIFI:WiFi802.11 a/b/g/n/r/ac (Dual-band Wi-Fi: 2.4G+5G)

WWAN

GSM: 900,850,1800,1900MHz;

WCDMA: B1/B2/B4/B5/B6/B8/B9/B19

TDD-LTE: B38/B39/B40/B41

FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B19/B20/B25/B26/B28AB/B30/B66

Intra-band Contiguous CA:1/2/3/4/5/7/8/9/12/38/39/40/41

Bluetooth:BT 4.2 BLE

GPS Support:GPS/AGPS/Glonass/ Beidou, Target SNR≥39dB (Singal level-130dBm)

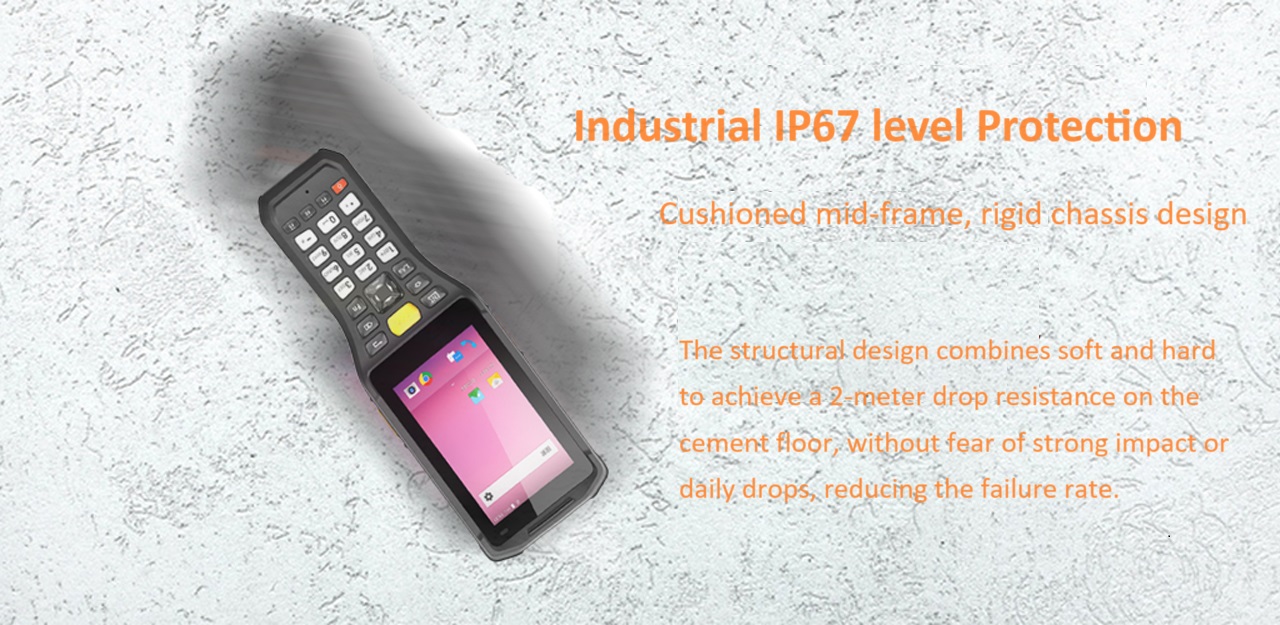

Drop：Multiple 2 meters drops to cement floor

IP level：IP67

ESD：±15kv air discharge ,±8kv direct discharge

Data capture

Camera (optional)

Rear Camera:13.0MP, auto focus, support PDAF

NFC (optional)

Frequency:13.56 MHZ

Reading distance:Within 3cm

Protocol standard:ISO/IEC 14443A/B, ISO/IEC 15693

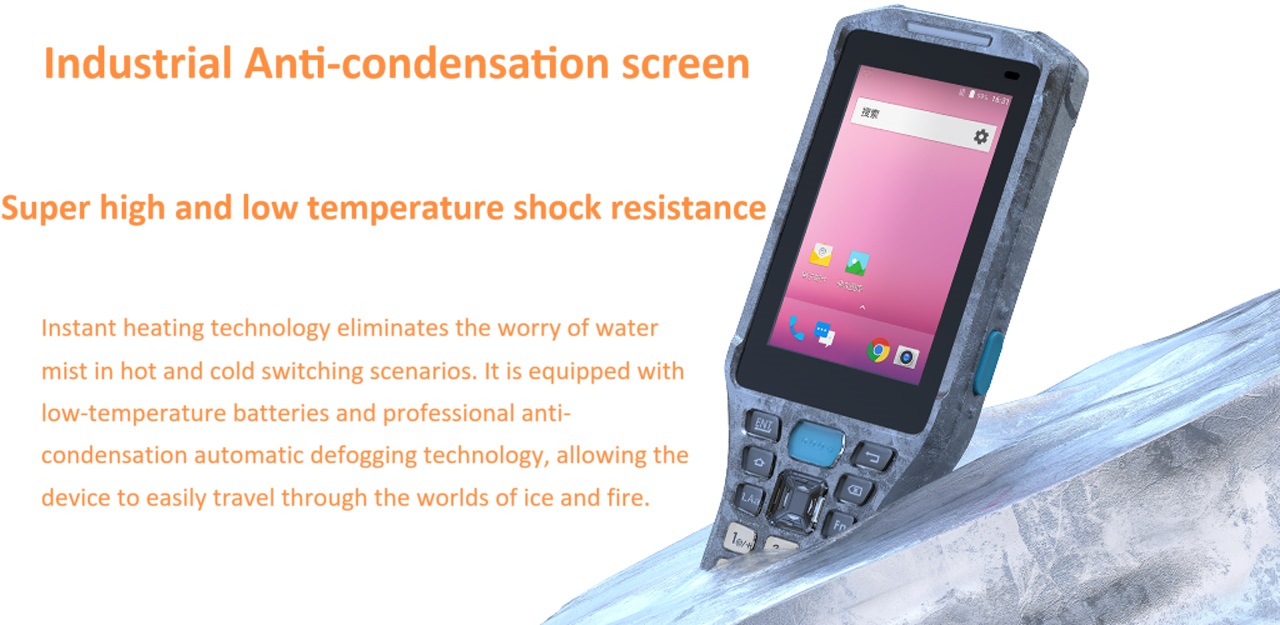

Anti-condensation heating indicator( optional)

Component:Temperature and humidity sensor, heating film attached to the scanning window, anti-condensation fogging

Indicator:ifferent colors on light strip show different status

2D Image Scanning Engine & Accessories

Optical Resolution:≥3mil

Scan Angle:Tilt ±60°, deflect ±60°, rotate 360°

Laser Safety Level:Class Ⅱ

Sacn speed:20 scans/ s

Light source system:White light illumination, laser aiming

Standard accessories:USB cable,adapter,user manual

Optional accessories:Battery charger
